Stainless Steel Cable Rope
| Payment Type: | L/C |
|---|
| Productivity: | 600 Tons Per Month |
|---|---|
| Supply Ability: | 600 Tons Per Month |
| Certificate: | ISO, AISI, ASTM, GB, EN, DIN, JIS |
Product Description
In addition to the wear of the outer layer of the steel wire, the wire rope is mainly broken due to metal fatigue caused by repeated bending when bypassing the pulley and drum. Therefore, the ratio of the pulley or drum to the wire rope diameter is an important factor in determining the life of the wire rope. The ratio is large, the bending stress of the steel wire is small, and the service life is long, but the mechanism is huge. The appropriate ratio must be determined according to the use occasion. The wire rope surface layer should be scrapped when the degree of wear and corrosion or the number of broken wires in each twisting distance exceeds the specified value. Wire rope refers to a flexible rope twisted with multiple or multiple strands of thin steel wires. The steel wire rope is a rope twisted into a spiral with a certain number of strands twisted around the core of the rope.
Model NO.
Product Description
Trade Terms: CIF CFR FOB EXW
Payment Terms: T/T & Irrevocable L/C at sight
Shipment: By Sea & By DHL & By Air
Lead Time: 20 days for 20' container order

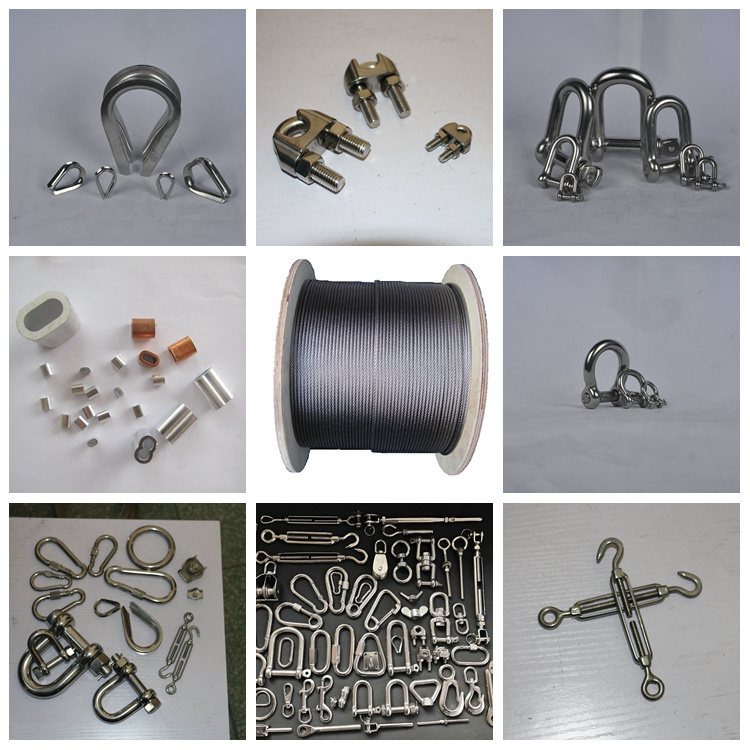

Related Products
TIANLI STAINLESS STEEL produce Stainless Steel Wire Rope and all related accessories.
7x19 Stainless Steel Wire Rope Specification

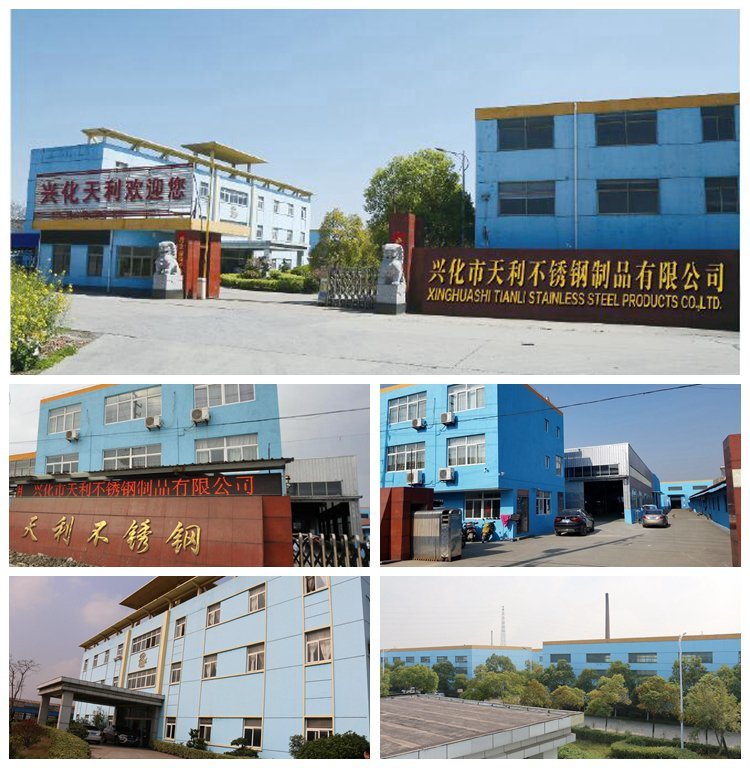

Company Information
TIANLI STAINLESS STEEL found in 2008, specialized in producing stainless steel products, such as stainless steel wire rope, stainless steel link chain, stainless steel round bar and its related accessories. Our annual sales over 5000 tons. our products not only popular with excellent quality, but also receive good market feedback from China domestic and overseas.

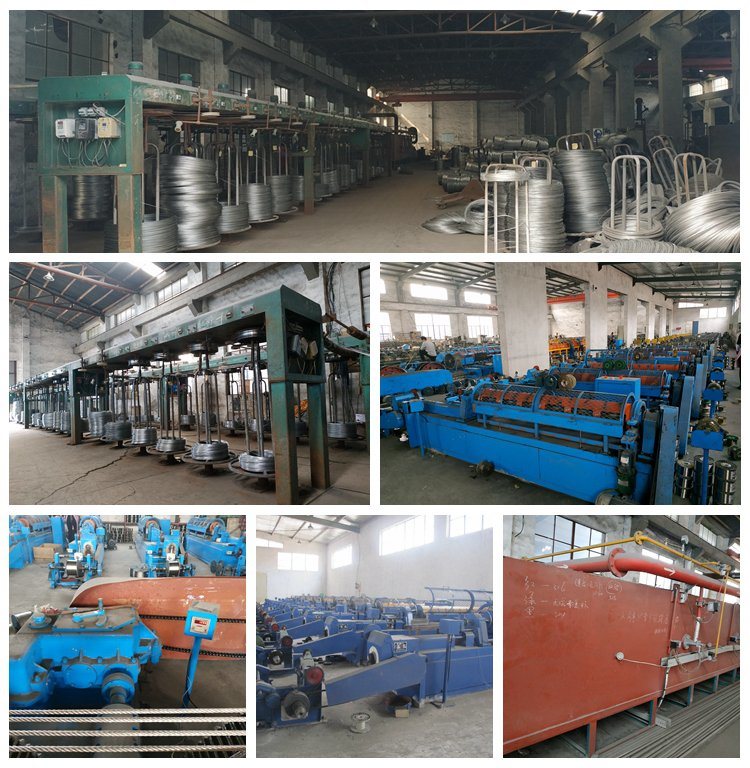

Factory
Part of our stainless steel wire rope production workshop. Monthly production capacity 600 tons.

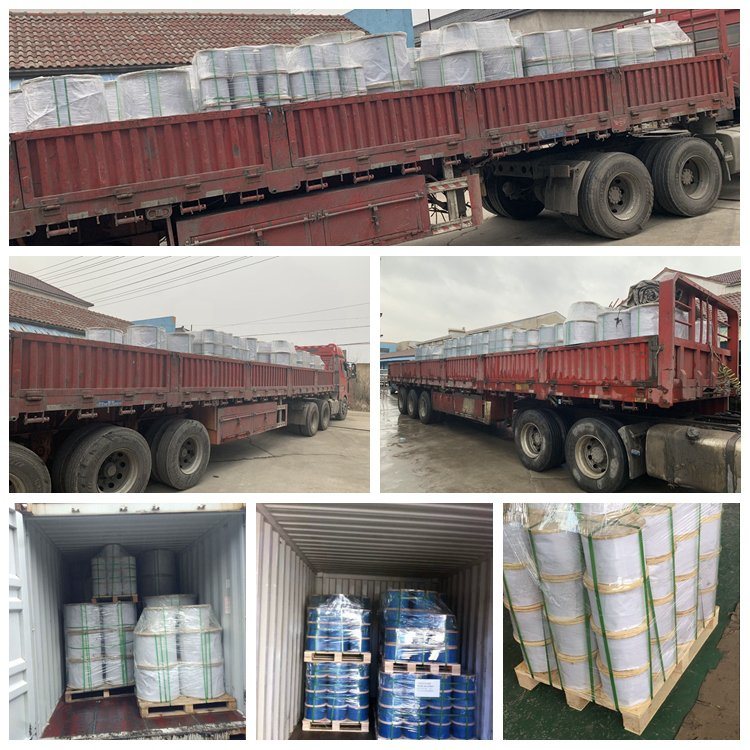

Packaging and Shipping
Stainless Steel Wire Rope all packed by clean plywood reel, reel on plywood pallet for easy loading and unloading. clear plastic film also covered to avoid dirt and water.
Certifications
We are an ISO9001:2008 certified manufacturer for Stainless Steel Products.
Test Report from our National Stainless Steel Products Quality Supervision & Inspection Center available, date of issue within 5 working days.
Inspection
We have strict quality control from raw material to production process and finished products.
Chemical composition analysis and tensile strength, minimum breaking load test for every production batch.
Stainless Steel Cable Rope
Product Description
| 1 | Product Name | Stainless Steel Cable Rope |
| 2 | Material | Stainless Steel |
| 3 | Stainless Steel Grade | 304 A2 1.4301 ( 316 A4 1.4401 optional ) |
| 4 | Construction | 7x19 ( 1x19 7x7 7x37 6x7 6x12 6x19 6x36 6x37 FC PP WSC IWRC optional ) |
| 5 | Diameter | 3mm ( we can produce 0.3mm to 40mm ) |
| 6 | Net Weight | 363 kg/1000m |
| 7 | Packing Length | 1000 meters per reel, other length such as 100m 200m 500m 1500m 2000m 1000ft 5000ft available |
| 8 | Lay | RHRL right hand regular lay, RHOL right hand ordinary lay |
| 9 | Tensile Strength | 1570 N/MM2 |
| 10 | Minimum Breaking Load | 53.4 kN |
| 11 | Finish | Bright & Dry & Smooth |
| 12 | HS CODE | 731210 |
Trade Terms: CIF CFR FOB EXW
Payment Terms: T/T & Irrevocable L/C at sight
Shipment: By Sea & By DHL & By Air
Lead Time: 20 days for 20' container order
Related ProductsTIANLI STAINLESS STEEL produce Stainless Steel Wire Rope and all related accessories.
7x19 Stainless Steel Wire Rope Specification
| Construction | Diameter mm | Approx kg/1000m | Minimum Breaking Load kN | Minimum Breaking Load kg |
| 7x19  | 2.5 | 25 | 4.41 | 450 |
| 3 | 36 | 6.37 | 650 | |
| 3.2 1/8" | 40.96 | 7.85 | 801 | |
| 4 | 64 | 8.62 | 880 | |
| 4.5 | 81 | 12.25 | 1250 | |
| 4.76 3/16" | 92.16 | 16.51 | 1685 | |
| 5 | 100 | 16.66 | 1700 | |
| 5.6 | 125.44 | 22.25 | 2270 | |
| 6 | 144 | 23.52 | 2400 | |
| 6.35 1/4" | 163.84 | 28.5 | 2908 | |
| 8 5/16" | 256 | 40.1 | 4082 | |
| 9 | 324 | 46 | 4694 | |
| 9.53 3/8" | 361 | 53.4 | 5449 | |
| 10 | 400 | 54 | 5510 | |
| 12 | 576 | 73 | 7449 | |
| 13 1/2" | 676 | 82 | 8367 | |
| 14 | 784 | 89 | 9082 | |
| 16 | 1024 | 124 | 12653 | |
| 18 | 1296 | 157 | 16020 | |
| 20 | 1600 | 194 | 19796 | |
| 22 | 1936 | 235 | 23980 | |
| 24 | 2304 | 280 | 28571 | |
| 26 | 2704 | 328 | 33469 | |
| 28 | 3136 | 381 | 38878 | |
| 30 | 3600 | 437 | 44592 | |
| 32 | 4096 | 497 | 50714 |
Company Information
TIANLI STAINLESS STEEL found in 2008, specialized in producing stainless steel products, such as stainless steel wire rope, stainless steel link chain, stainless steel round bar and its related accessories. Our annual sales over 5000 tons. our products not only popular with excellent quality, but also receive good market feedback from China domestic and overseas.
Factory
Part of our stainless steel wire rope production workshop. Monthly production capacity 600 tons.
Packaging and Shipping
Stainless Steel Wire Rope all packed by clean plywood reel, reel on plywood pallet for easy loading and unloading. clear plastic film also covered to avoid dirt and water.
Certifications
We are an ISO9001:2008 certified manufacturer for Stainless Steel Products.
Test Report from our National Stainless Steel Products Quality Supervision & Inspection Center available, date of issue within 5 working days.
Inspection
We have strict quality control from raw material to production process and finished products.
Chemical composition analysis and tensile strength, minimum breaking load test for every production batch.
